ACDC-10 An Intuitive 10-amp AC and DC Variable Power Supply

A portable, rugged, and intuitive 10-amp AC and DC variable power supply for resetting circuit breaker charging motors and other general-purpose applications.

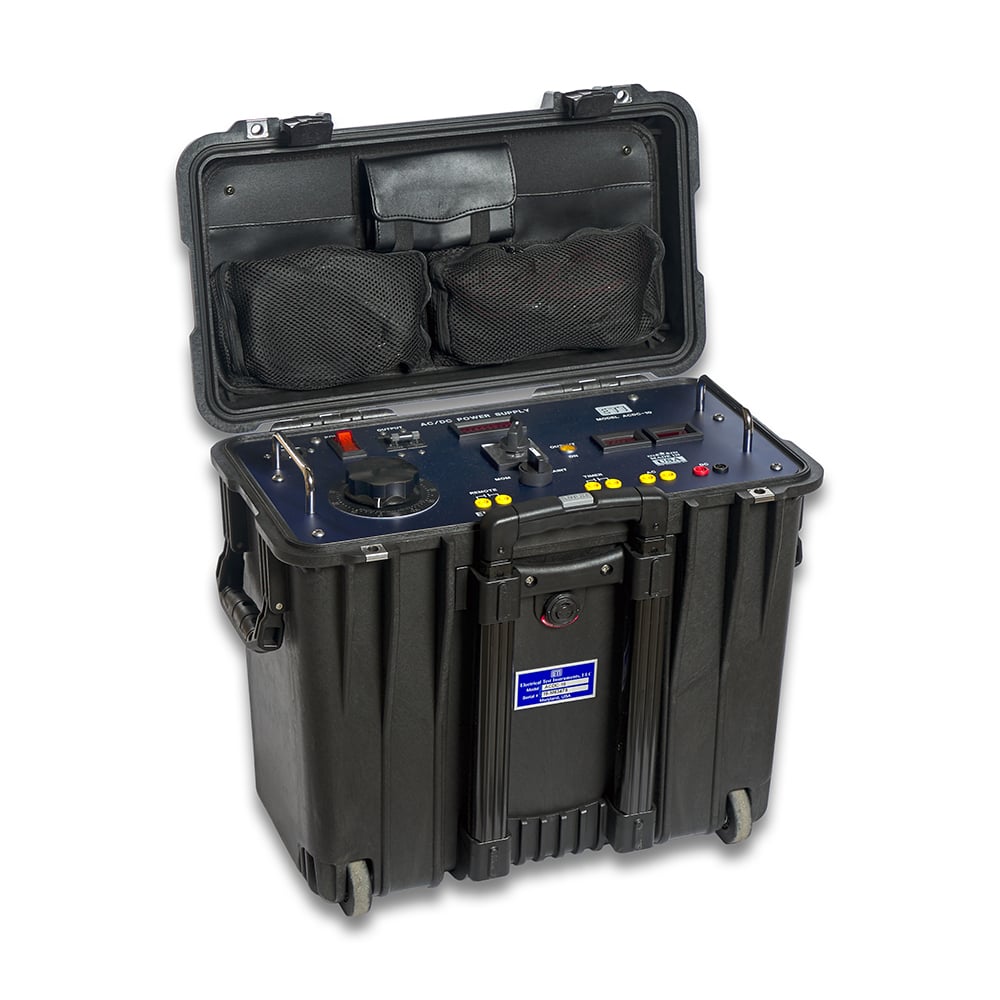

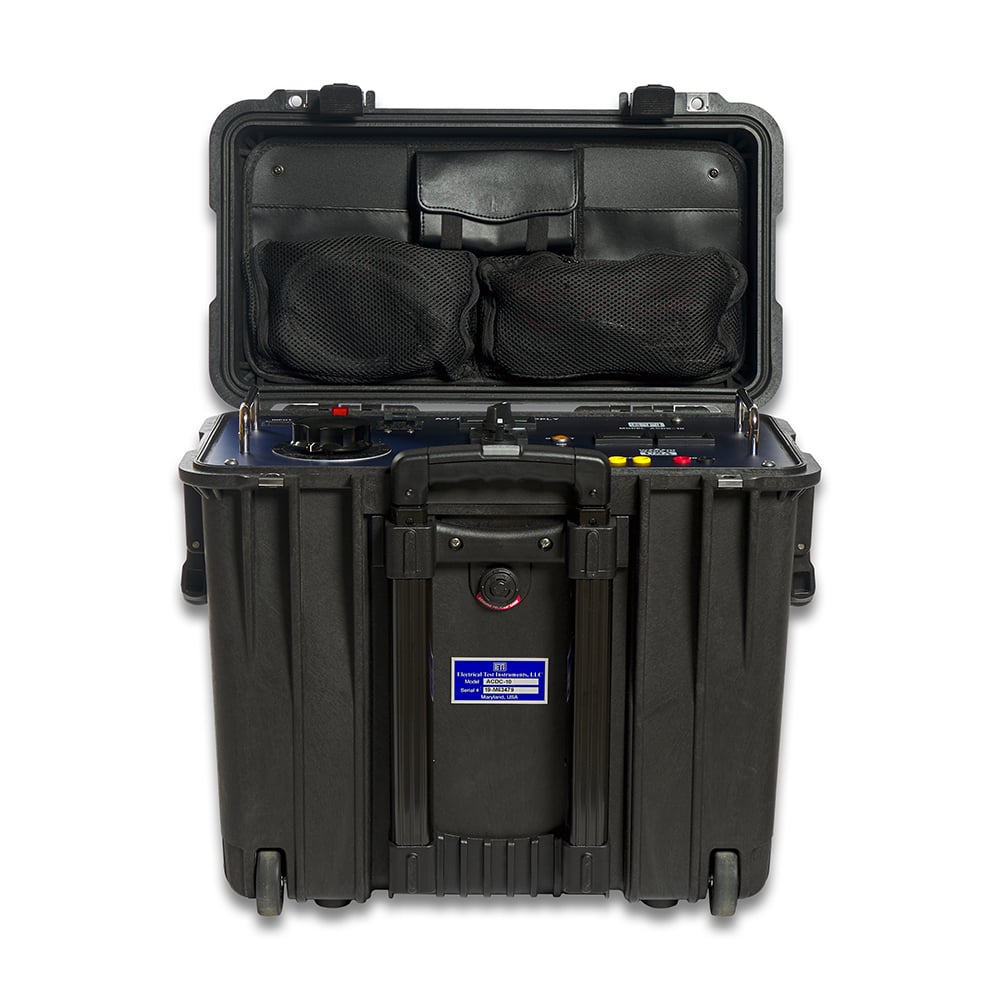

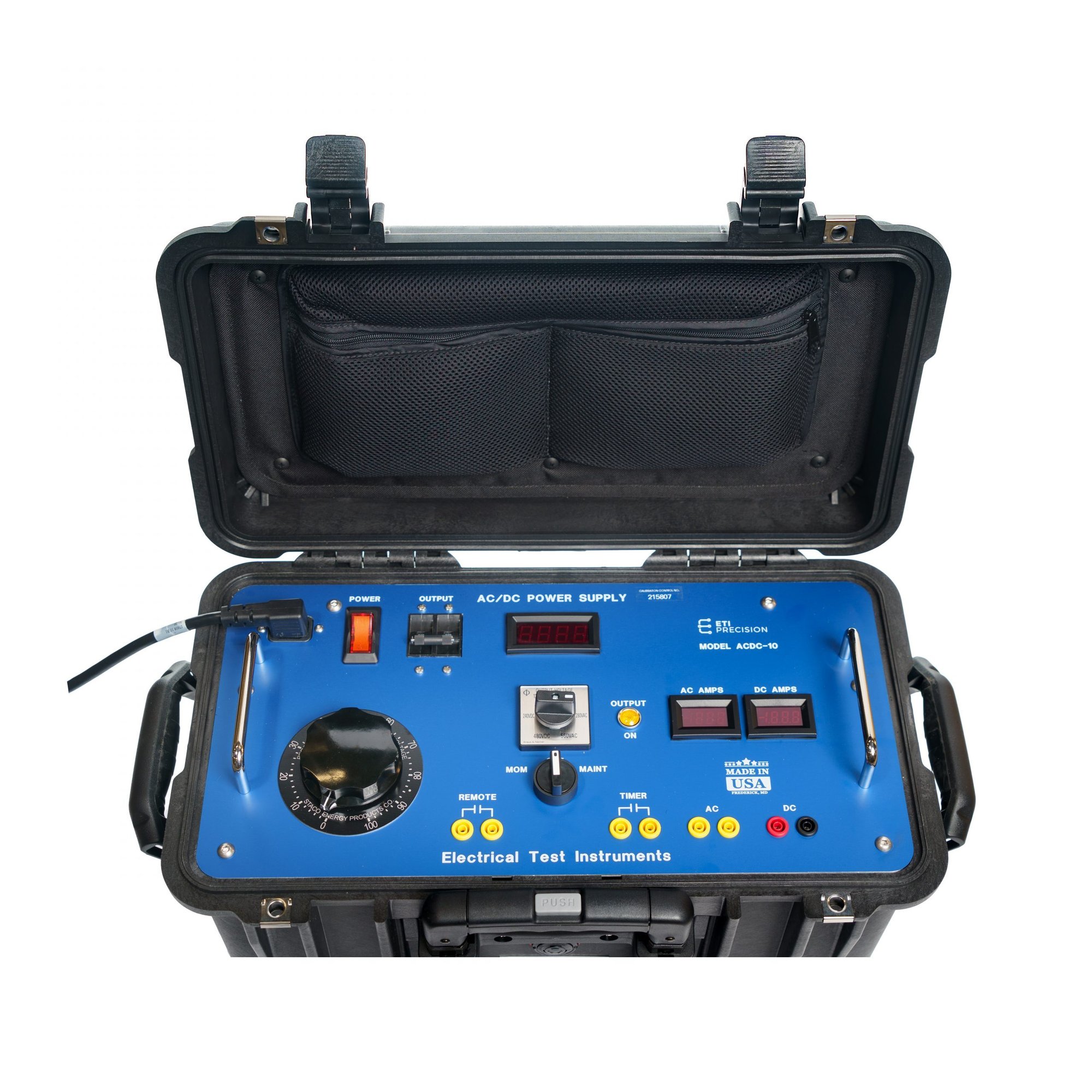

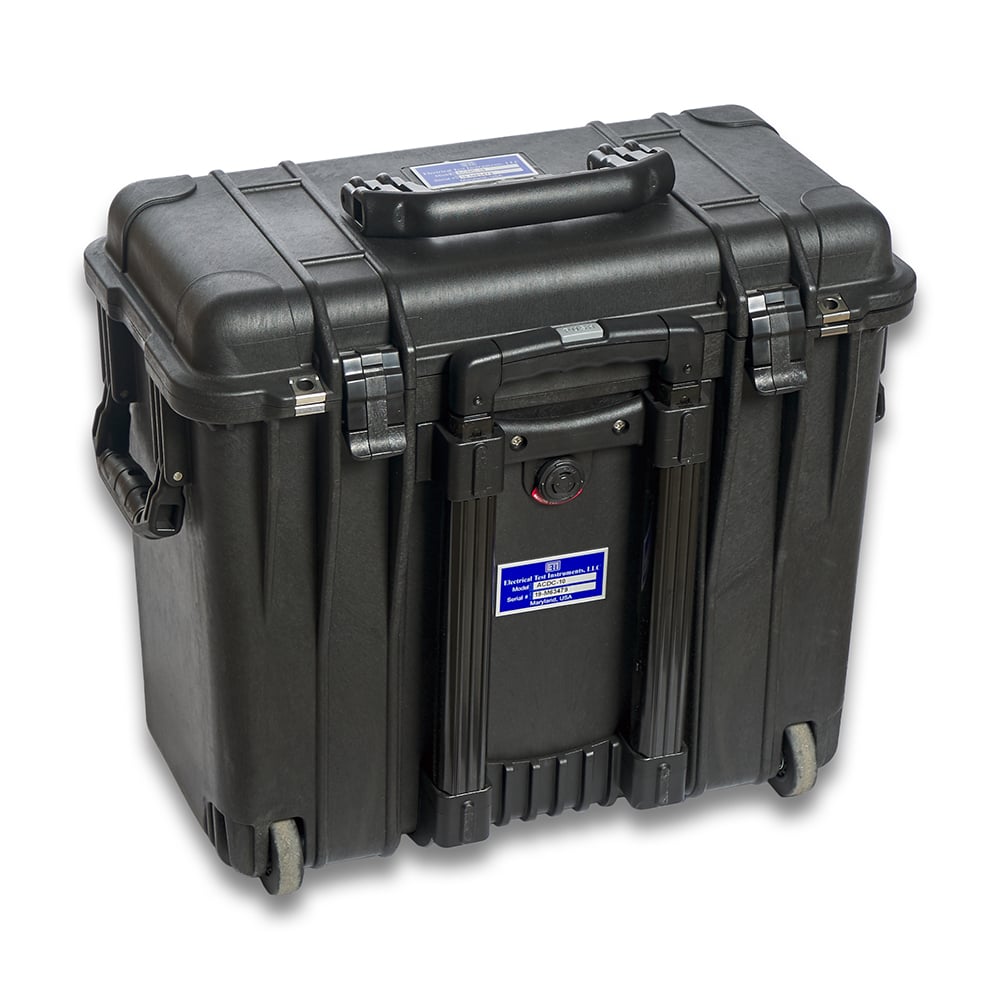

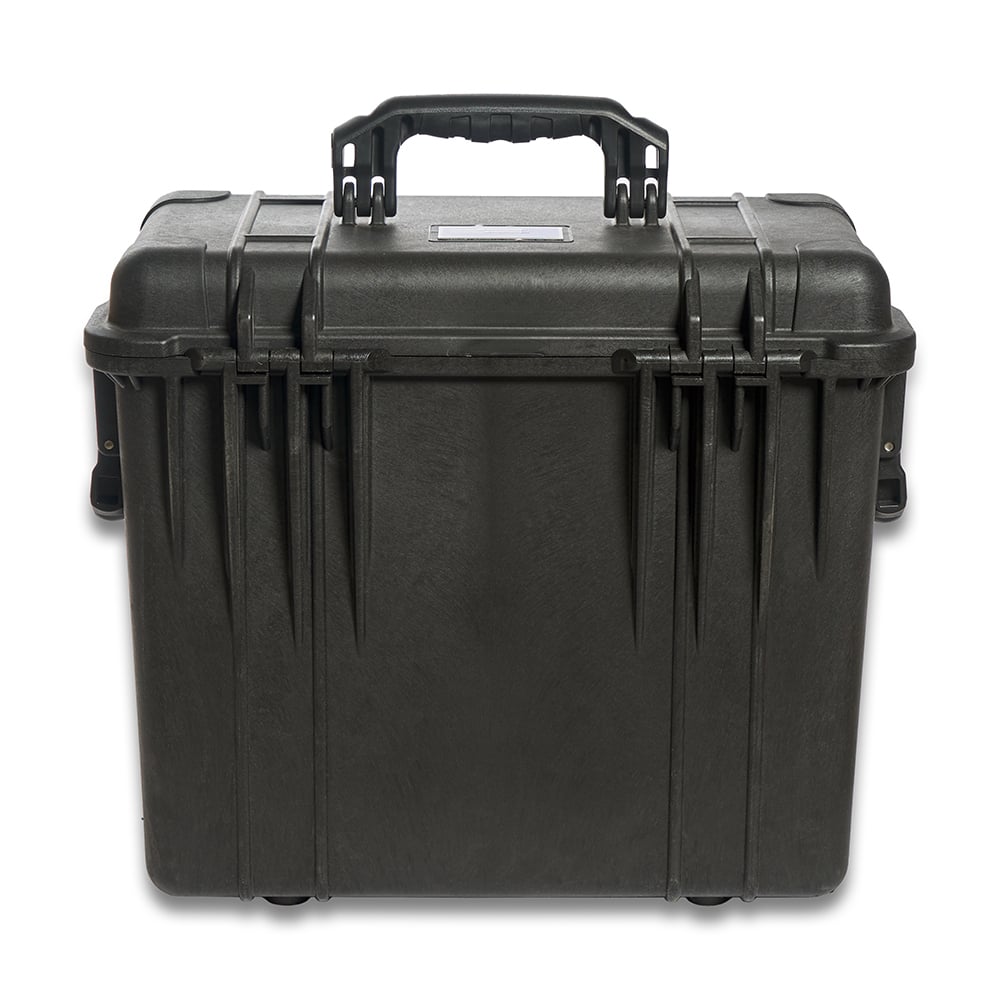

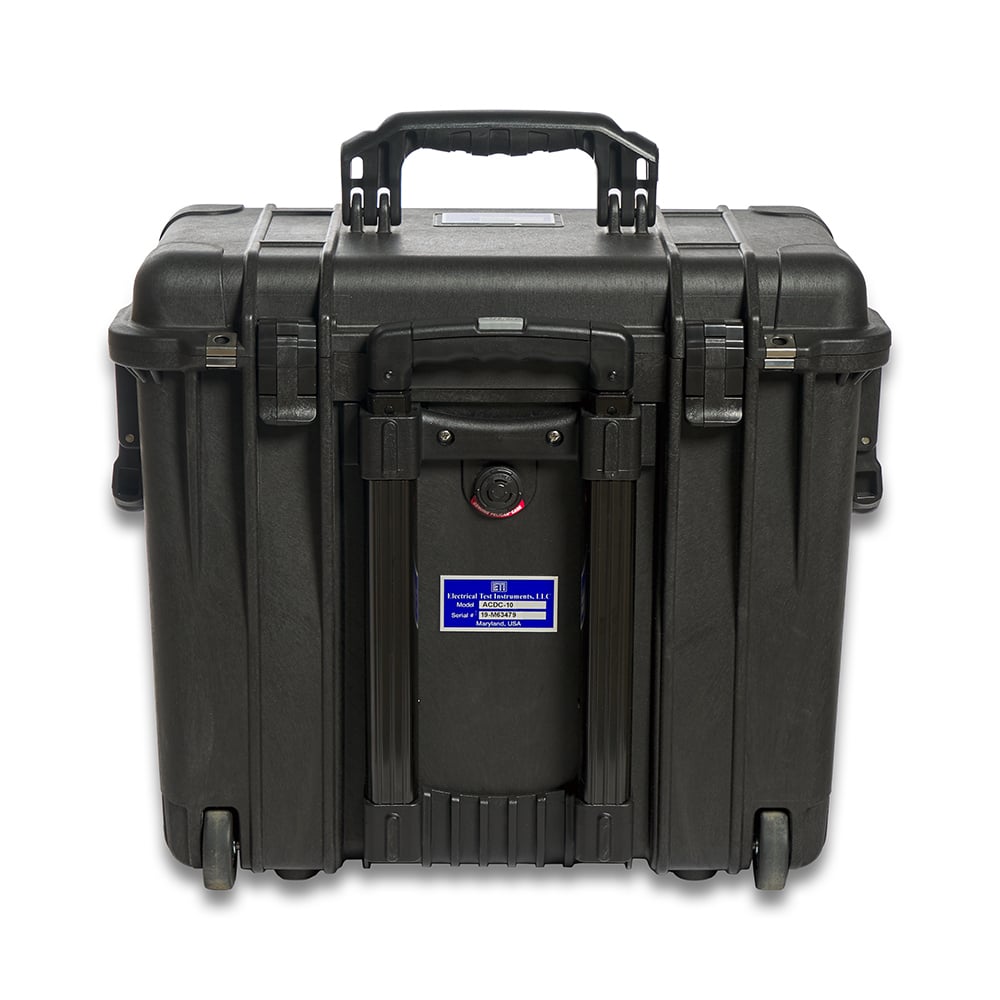

The ETI Model ACDC-10 is a small, lightweight, and portable AC and DC power supply. The unit is intended for resetting circuit breaker charging motors and other general-purpose applications. It will provide DC voltage in three nominal ranges from 0-120V, 240V, and 480V at 1 kVA, as well as AC voltage in three nominal ranges from 0-140V, 280V, and 560V at 1.4 kVA. The ACDC-10 is housed in a rugged plastic enclosure approximately 20” x 11” x 18” and weighs less than 65 lbs

This newly-redesigned unit features the following updates:

  • Independent AC and DC ammeters with improved accuracy;
  • An upgraded standard IEC power cord;
  • Filtering on the 120V DC range;
  • Safety banana jacks for unit outputs; and,
  • Improved voltmeter accuracy.
