MAC-21 Transforming analog circuit breaker testers to sophisticated digital test sets

An advanced self-contained microprocessor-based metering and control package for primary injection circuit breaker testers.

Overview

The MAC-21 uses proven microprocessor and A/D converter technology to provide real-time waveform analysis. This ensures accurate true-RMS readings of current pulses, even with DC offset and distortion, which are typical in primary injection testing. Intelligent threshold algorithms provide accurate trip time measurement. Integration of measurement and control functions allow advanced features such as preset on times, auto ranging, and optional printer or computer interface.

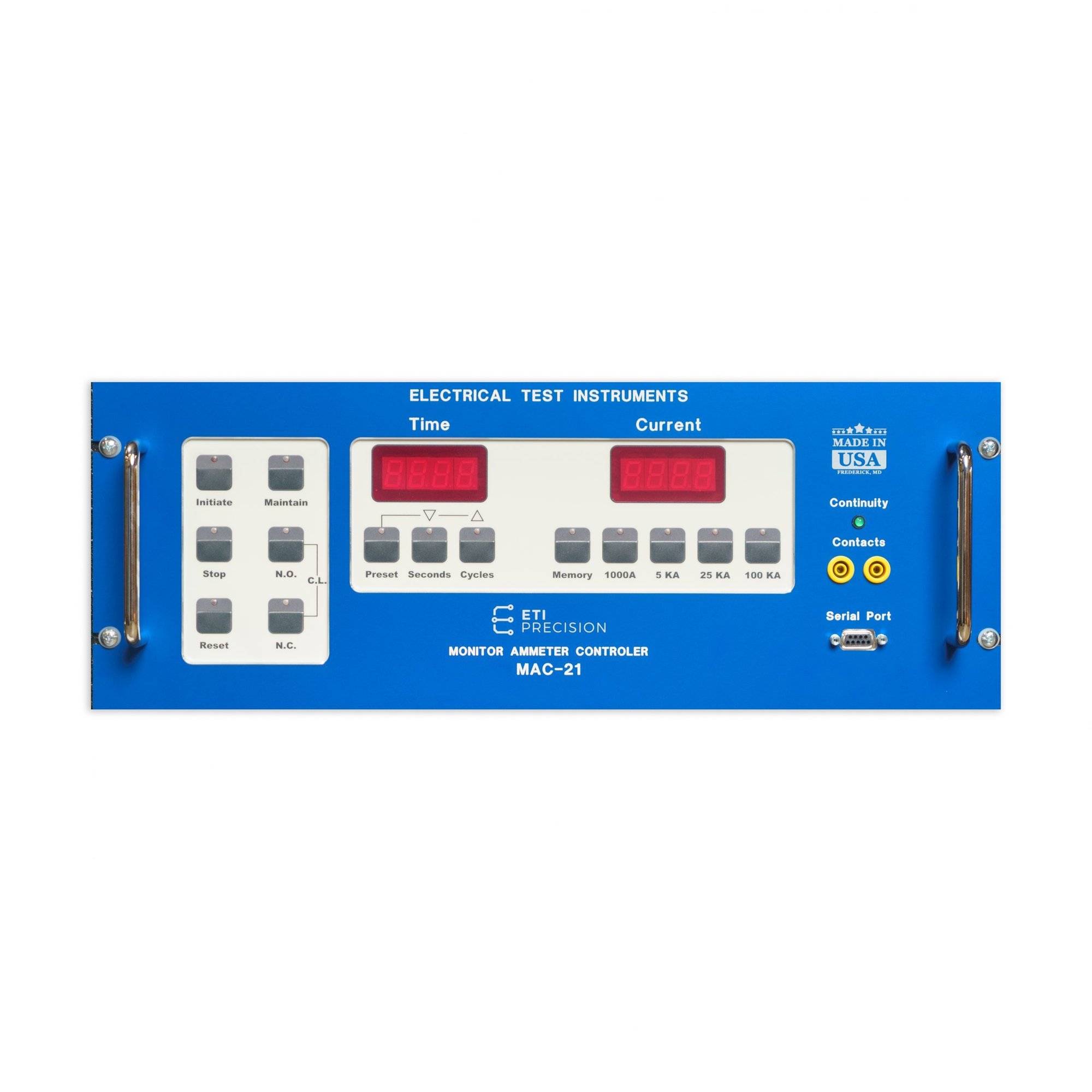

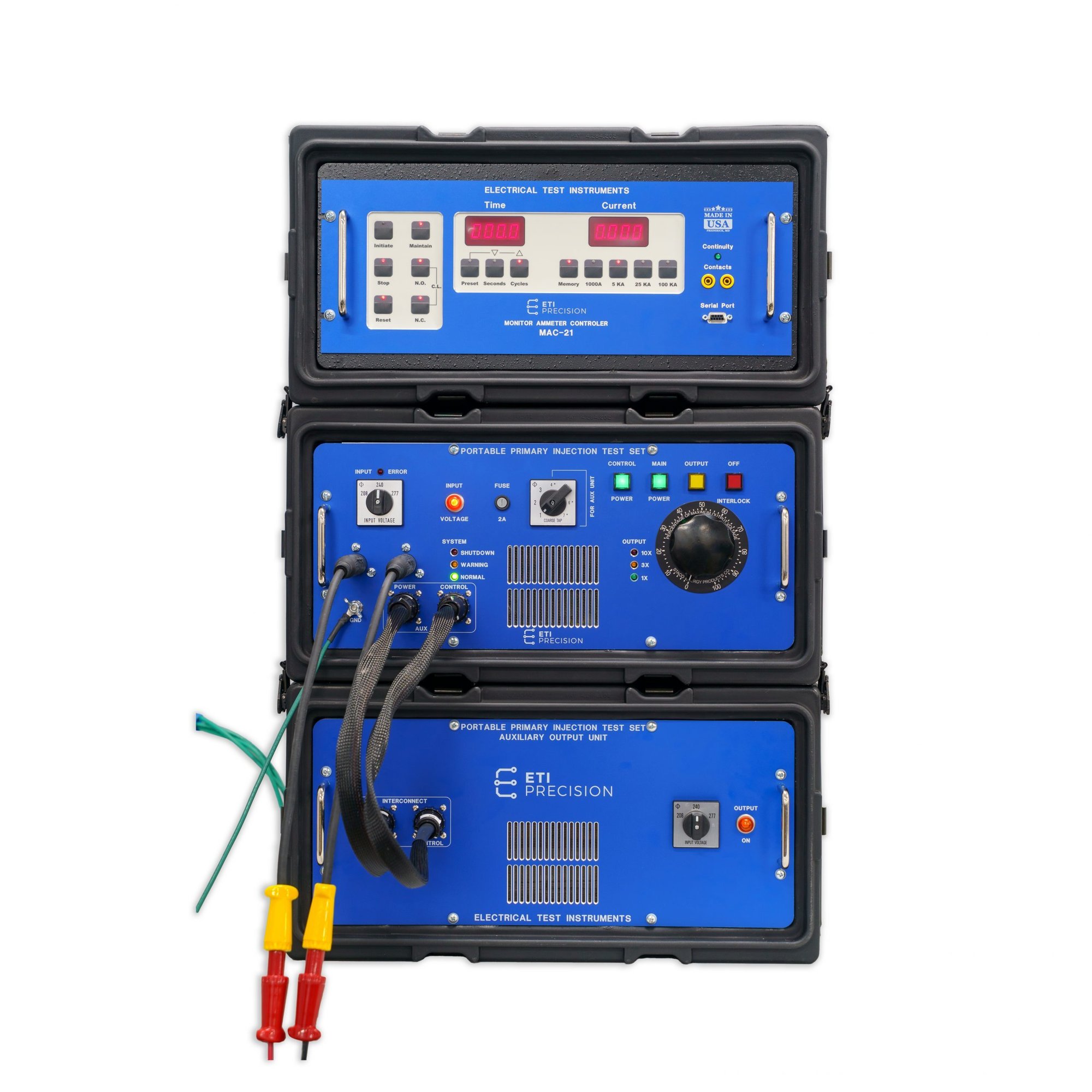

Front panel controls consist of large rugged push-buttons with tactile feedback and LED indicators. Time and current are displayed on large, bright LED displays.

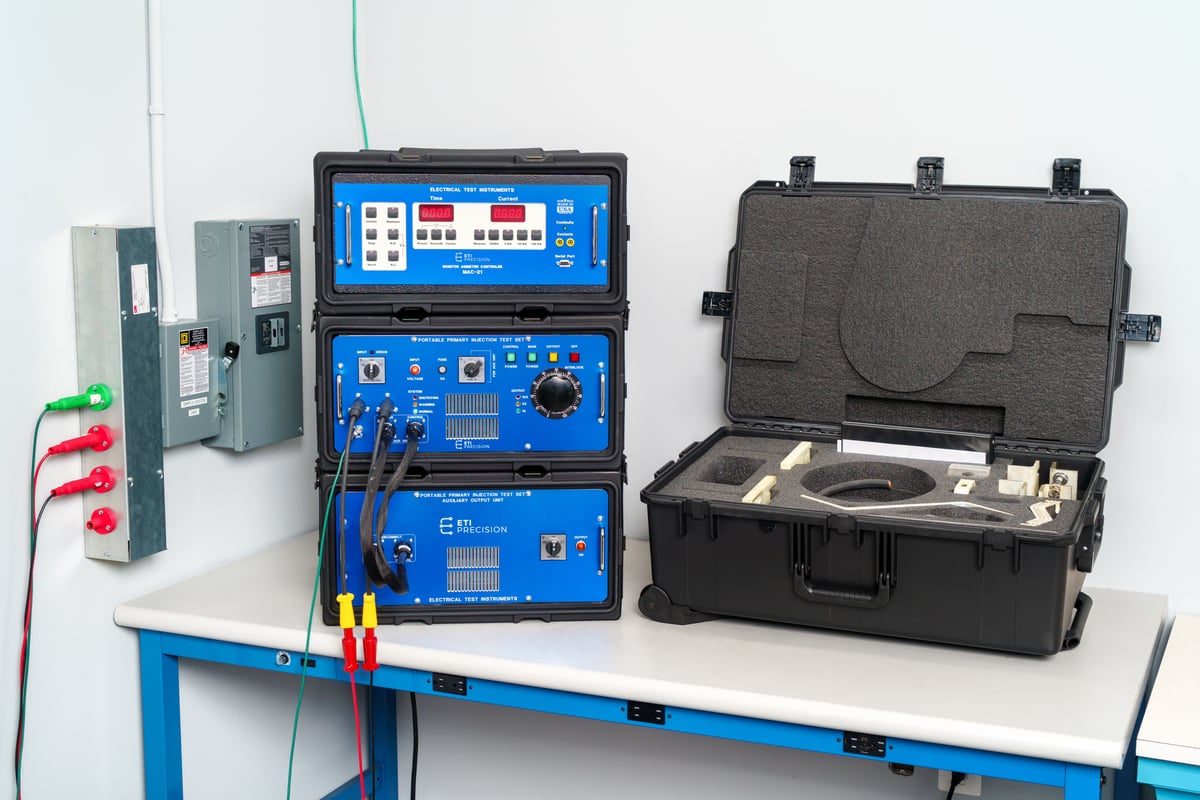

Standard components and modular construction are used for high reliability, simple service, and low cost. The Package is a rugged, standard 19″ x 7″ rack mounting assembly that easily mounts in most high current test sets. All inputs and outputs are provided through a standard twist-lock connector and allows easy removal of the instrumentation package for service or safe transportation.

Applications

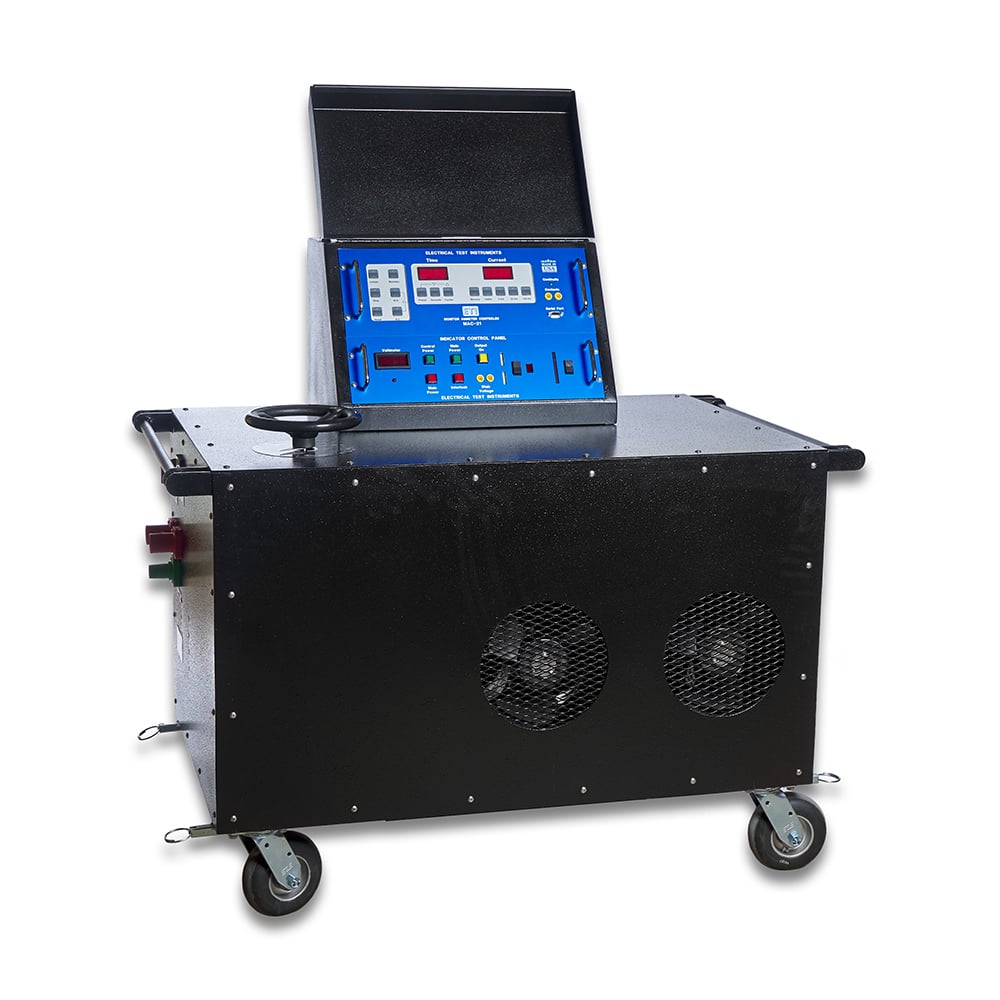

The MAC-21 Monitor Ammeter Controller is recommended for replacement of older current meters, timers, and control panels in circuit breaker testers from a wide variety of manufacturers. Call us today to learn about the MAC-21’s compatibility with your unit.

INITIATE key: This key is used to turn ON the output of the test set. The LED in the key indicates that the MAC-21 is attempting to turn the output ON. In MOMENTARY mode, the key must be held to keep output current on. In MAINTAIN mode, once current is detected, the output will stay on until the breaker trips, or the STOP or RESET button are pressed.

STOP key: This key is used to turn the output of the test set OFF. Use of this key is usually necessary only when in MAINTAIN mode, and it is necessary to abort the test before the breaker trips. The STOP key is also used to access peak RMS and last average RMS values. See description of CURRENT DISPLAY for details.

RESET key: This key resets the displays on the MAC-21, and arms the pulse reading system. The LED on the key indicates that the system is reset and armed. RESET also takes the unit out of PRESET ADJUST mode.

DOWNLOAD key combination: On models equipped with a printer option, the STOP and RESET keys may be pressed simultaneously to send the time and current readings in ASCII format to a printer or computer, via the serial port.

MAINTAIN key: This key toggles the MAINTAIN or MOMENTARY mode for initiation; its LED indicates that this mode is enabled. When in MAINTAIN mode, the INITIATE key need only be pressed briefly to turn output on. For test sets with motorized vernier, the MAINTAIN key may be pressed while output is ON to provide automatic current hold feature. The LED in the MAINTAIN key will blink while this mode is set, and the vernier motor will be activated whenever the current varies more than 5 amperes from the value displayed when the key was pressed. The key may be pressed again to return to normal mode. STOP or RESET will also discontinue current hold.

NORMALLY OPEN key: This key is used to set the Normally Open contacts mode when testing a device with an normally open auxiliary contacts. In N.O. mode, the timer starts as soon as current (about 3% of range) is detected after the INITIATE key is pressed, and stops when the STOP key is pressed or a break in continuity is sensed at the CONTACTS binding posts. Timing accuracy in this mode is typically +/- 0.01 seconds.

NORMALLY CLOSED key: This key is used to set the Normally Closed contacts mode when testing a device with an normally closed auxiliary contacts. In N.C. mode, the timer starts as soon as current (about 3% of range) is detected after the INITIATE key is pressed, and stops when the STOP key is pressed or a break in continuity is sensed at the CONTACTS binding posts. Timing accuracy in this mode is typically +/- 0.01 seconds.

Current Latch key combination: When the N.O. and N.C. keys are pressed simultaneously, both LEDs light, indicating C.L. mode (Current Latch). This is the normal power-up default mode for the test set, and is recommended for all tests. In this mode, current is continuously sampled, and when it exceeds approximately 10% of the current range value, the timer starts, and calculation of pulse current begins. When current stops the timer stops and the final value for pulse current is calculated and displayed as well as the time.

PRESET key: This key toggles the PRESET ADJUST mode, indicated by illumination of its LED. This feature is used to set current test durations for short times (jog or instantaneous) using the cycles or long times (heat runs) using the seconds modes. When not in PRESET mode, the LED will flash if the displayed time exceeds the preset limit.

TIME DISPLAY: This 4 digit LED display indicates the elapsed time of a current pulse. In SECONDS mode, it displays time up to 9.999 seconds, then autoranges to 99.99 seconds, 999.9 seconds, and 9999 seconds. In CYCLES mode, it reads time (based on 60 Hz), up to 999.9 cycles, then autoranges to 9999 cycles

SECONDS key: This key normally selects the SECONDS timebase. SECONDS or CYCLES timebase may be selected at any time before, during, or after a test.

CYCLES key: This key normally selects the CYCLES timebase. SECONDS or CYCLES timebase may be selected at any time before, during, or after a test.

CURRENT DISPLAY: This 4 digit LED display indicates the output current. In CONTINUOUS mode, as well as in MEMORY mode before and during a test, the display indicates true-RMS output current in real time. This display can also indicate peak RMS and last average current. This feature allows the test set to be used to test various solid state trip devices used on circuit breakers. It may not be accurate for times less than half a cycle.

MEMORY key: This key toggles the MEMORY mode, indicated by illumination of its LED. In MEMORY mode (LED on), the current display will read the continuous output current until the test is complete. At this time, the LED will flash, and the display will read the computed true-RMS value of the entire current pulse for the duration indicated on the TIME display. This key may be pressed at any time before, during, or after the test, to toggle between the two modes.
